It’s OK to Get Stressed Out with OpenAM

March 7, 2014 1 comment

In fact, it’s HIGHLY recommended….

Performance testing and stress testing are closely related and are essential tasks in any OpenAM deployment.

PerformanceTesting

When conducting performance testing, you are trying to determine how well your system performs when subjected to a particular load. A primary goal of performance testing is to determine whether the system that you just built can support your client base (as defined by your performance requirements).  Oftentimes you must tweak things (memory, configuration settings, hardware) in order to meet your performance requirements, but without executing performance tests, you will never know if you can support your clients until you are actually under fire (and by then, it may be too late).

Performance testing is an iterative process as shown in the following diagram:

IterativePerfTesting

Each of the states may be described as follows:

  1. Test – throw a load at your server
  2. Measure – take note of the results
  3. Compare – compare your results to those desired
  4. Tweak – modify the system to help achieve your performance results

During performance testing you may continue in this loop until such time that you meet your performance requirements – or until you find that your requirements were unrealistic in the first place.

Stress testing (aka “torture testing”) goes beyond normal performance testing in that the load you place on the system intentionally exceeds the anticipated capacity.  The goal of stress testing is to determine the breaking point of the system and observe the behavior when the system fails.

Load-Testing-and-Stress-Testing

Stress testing allows you to  create contingency plans for those ‘worse case scenarios’ that will eventually occur (thanks to Mr. Murphy).

Before placing OpenAM into production you should test to see if your implementation meets your current performance requirements (concurrent sessions, authentications per second, etc.) and have a pretty good idea of where your limitations are.  The problem is that an OpenAM deployment is comprised of multiple servers – each that may need to be tested (and tuned) separately.  So how do you know where to start?

When executing performance and stress tests in OpenAM, there are three areas where I like to place my focus: 1) the protected application, 2) the OpenAM server, and 3) the data store(s). Testing the system as a whole may not provide enough information to determine where problems may lie and so I prefer to take an incremental approach that tests each component in sequence.  I start with the data stores (authentication and user profile databases) and work my way back towards the protected application – with each iteration adding a new component.

InterativeTesting

Note:  It should go without saying that the testing environment should mimic your production environment as closely as possible.  Any deviation may cause your test results to be skewed and provide inaccurate data.

Data Store(s)

An OpenAM deployment may consist of multiple data stores – those that are used for authentication (Active Directory, OpenDJ, Radius Server, etc.) and those that are used to build a user’s profile (LDAP and RDBMS).  Both of these are core to an OpenAM deployment and while they are typically the easiest to test, a misconfiguration here may have a pretty big impact on overall performance.  As such, I start my testing at the database layer and focus only on that component.

IterativeTesting2

Performance of an authentication database can be measured by the average number of authentications that occur over a particular period of time (seconds, minutes, hours) and the easiest way to test these types of databases is to simply perform authentication operations against them.

You can write your own scripts to accomplish this, but there are many freely available tools that can be used as well.  One tool that I have used in the past is the SLAMD Distributed Load Generation Engine.  SLAMD was designed to test directory server performance, but it can be used to test web applications as well.  Unfortunately, SLAMD is no longer being actively developed, but you can still download a copy from http://dl.thezonemanager.com/slamd/.

A tool that I have started using to test authentications against an LDAP server is authrate, which is included in ForgeRock’s OpenDJ LDAP Toolkit.  Authrate allows you to stress the server and display some really nice statistics while doing so.  The authrate command line tool measures bind throughput and response times and is perfect for testing all sorts of LDAP authentication databases.

Performance of a user profile database is typically measured in search performance against that database.  If your user profile database can be searched using LDAP (i.e. Active Directory or any LDAPv3 server), then you can use searchrate – also included in the OpenDJ LDAP Toolkit.  searchrate is a command line tool that measures search throughput and response time.

The following is sample output from the searchrate command:

-------------------------------------------------------------------------------
     Throughput                            Response Time
   (ops/second)                           (milliseconds)
recent  average  recent  average  99.9%  99.99%  99.999%  err/sec  Entries/Srch
-------------------------------------------------------------------------------
 188.7    188.7   3.214    3.214  306.364 306.364  306.364    0.0           0.0
 223.1    205.9   2.508    2.831  27.805  306.364  306.364    0.0           0.0
 245.7    219.2   2.273    2.622  20.374  306.364  306.364    0.0           0.0
 238.7    224.1   2.144    2.495  27.805  306.364  306.364    0.0           0.0
 287.9    236.8   1.972    2.368  32.656  306.364  306.364    0.0           0.0
 335.0    253.4   1.657    2.208  32.656  306.364  306.364    0.0           0.0
 358.7    268.4   1.532    2.080  30.827  306.364  306.364    0.0           0.0

The first two columns represent the throughput (number of operations per second) observed in the server. The first column contains the most recent value and the second column contains the average throughput since the test was initiated (i.e. the average of all values contained in column one).

The remaining columns represent response times with the third column being the most recent response time and the fourth column containing the average response time since the test was initiated. Columns five, six, and seven (represented by percentile headers) demonstrate how many operations fell within that range.

For instance, by the time we are at the 7th row, 99.9% of the operations are completed in 30.827 ms (5th column, 7th row), 99.99% are completed in 306.364 ms (6th column, 7th row), and 99.999% of them are completed within 306.364 ms (7th column, 7th row). The percentile rankings provide a good indication of the real system performance and can be interpreted as follows:

  • 1 out of 1,000 search requests is exceeding 30 ms
  • 1 one out of 100,000 requests is exceeding 306 ms

Note: The values contained in this search were performed on an untuned, limited resource test system. Results will vary depending on the amount of JVM memory, the system CPU(s), and the data contained in the directory. Generally, OpenDJ systems can achieve much better performance that the values shown above.

There are several factors that may need to be considered when tuning authentication and user profile databases.  For instance, if you are using OpenDJ for your database you may need to modify your database cache, the number of worker threads, or even how indexing is configured in the server.  If your constraint is operating system based, you may need to increase the size of the JVM or the number of file descriptors.   If the hardware is the limiting factor, you may need to increase RAM, use high speed disks, or even faster network interfaces.  No matter what the constraint, you should optimize the databases (and database servers) before moving up the stack to the OpenAM instance.

OpenAM Instance + Data Store(s)

Once you have optimized any data store(s) you can now begin testing directly against OpenAM as it is configured against those data store(s).  Previous testing established a performance baseline and any degradation introduced at this point will be due to OpenAM or the environment (operating system, Java container) where it has been configured.

IterativeTesting3

But how can you test an OpenAM instance without introducing the application that it is protecting?  One way is to generate a series of authentications and authorizations using direct interfaces such as the OpenAM API or REST calls.  I prefer to use REST calls as this is the easiest to implement.

There are browser based applications such as Postman that are great for functional testing, but these are not easily scriptable.  As such, I lean towards a shell or Perl script containing a loop of cURL commands.

Note: You should use the same authentication and search operations in your cURL commands to be sure that you are making a fair comparison between the standalone database testing and the introduction of OpenAM.

You should expect some decrease in performance when the OpenAM server is introduced, but it should not be too drastic.  If you find that it falls outside of your requirements, however, then you should consider updating OpenAM in one of the following areas:

  • LDAP Configuration Settings (i.e. connections to the Configuration Server)
  • Session Settings (if you are hitting limitations)
  • JVM Settings (pay particular attention to garbage collection)
  • Cache Settings (size and time to live)

Details behind each of these areas can be found in the OpenAM Administration Guide.

You may also find that OpenAM’s interaction with the database(s) introduces searches (or other operations) that you did not previously test for.  This may require you to update your database(s) to account for this and restart your performance testing.

Note:  Another tool I have started playing with is the Java Application Monitor (aka JAMon).  While this tool is typically used to monitor a Java application, it provides some useful information to help determine bottlenecks working with databases, file IO, and garbage collection.

Application + OpenAM Instance + Data Store(s)

Once you feel comfortable with the performance delivered by OpenAM and its associated data store(s), it is time to introduce the final component – the protected application, itself.

InterativeTesting

This will differ quite a bit based on how you are protecting your application (for instance, policy agents will behave differently from OAuth2/OpenID Connect or SAML2) but this does provide you with the information you need to determine if you can meet your performance requirements in a production deployment.

If you have optimized everything up to this point, then the combination of all three components will provide a full end to end test of the entire system.  In this case, then an impact due to network latency will be the most likely factor in performance testing.

To perform a full end to end test of all components, I prefer to use Apache JMeter.  You configure JMeter to use a predefined set of credentials, authenticate to the protected resource, and look for specific responses from the server.  Once you see those responses, JMeter will act according to how you have preconfigured it to act.  This tool allows you to generate a load against OpenAM from login to logout and anything in between.

Other Considerations

Keep in mind that any time that you introduce a monitoring tool into a testing environment, the tool (itself) can impact performance.  So while the numbers you receive are useful, they are not altogether acurate.  There may be some slight performance degradation (due to the introduction of the tool) that your users will never see.

You should also be aware that the client machine (where the load generation tools are installed) may become a bottleneck if you are not careful.  You should consider distributing your performance testing tools across multiple client machines to minimize this effect.  This is another way of ensuring that the client environment does not become the limiting factor.

Summary

Like many other areas in our field, performance testing an OpenAM deployment may be considered as much of an art as it is a science.  There may be as many methods for testing as there are consultants and each varies based on the tools they use.  The information contained here is just one approach performance testing – one that I have used successfully in our deployments.

What methods have you used?  Feel free to share in the comments, below.

How to Configure OpenAM Signing Keys

February 9, 2014 5 comments

The exchange of SAML assertions between an Identity Provider (IdP) and a Service Provider (SP) uses Public-key Cryptography to validate the identity of the IdP and the integrity of the assertion.

Securing SAML Assertions

SAML assertions passed over the public Internet will include a digital signature signed by an Identity Provider’s private key.  Additionally, the assertion will include the IdP’s public key contained in the body of a digital certificate.  Service Providers receiving the assertion can be assured that it has not been tampered with by comparing the unencrypted (hashed) message obtained from the digital signature with a hashed version of the message created by the Service Provider using the same hashing algorithm.

The process can be demonstrated by the following diagram where the Signing process is performed by the IdP and the Verification process is performed by the SP.  The “Data” referred to in the diagram is the assertion and the “Hash function” is the hashing algorithm used by both the Identity Provider and the Service Provider.

Digital_Signature_diagram

In order for an Identity Provider to sign the assertion, they must first have a digital certificate.

OpenAM includes a default certificate that can use for testing purposes.  This certificate is common to all installations and while convenient, should not be used for production deployments.  Instead, you should either use a certificate obtained from a trusted certificate authority (such as Thawte or Entrust) or generate your own self-signed certificate.

Note:  For the purposes of this article, $CONFIG refers to the location of the configuration folder specified during the installation process.  $URI refers to the URI of the OpenAM application; also specified during the installation process (i.e. /openam).

OpenAM’s Default Signing Key

OpenAM stores its certificates in a Java Keystore file located in the $CONFIG/$URI folder by default.  This can be found in the OpenAM Console as follows:

  1. Log in to the OpenAM Console as the administrative user.
  2. Select the Configuration tab.
  3. Select the Servers and Sites subtab.
  4. In the Servers panel, select the link for the appropriate server instance.
  5. Select the Security tab.
  6. Select the Key Store link at the top of the page.

You will see that the default location for the Java Keystore file, all passwords, and the alias of the default test certificate as follows:

keystoreLocation

Viewing the Contents of OpenAM’s Default Certificate

You can view the contents of this file as follows:

  1. Change to the $CONFIG/$URI folder.
  2. Use the Java keytool utility to view the contents of the file.  (Note:  The contents of the file are password protected.  The default password is:  changeit)

# keytool –list –keystore keystore.jks

Enter keystore password:   changeit

Keystore type: JKS

Keystore provider: SUN

Your keystore contains 1 entry

Alias name: test

Creation date: Jul 16, 2008

Entry type: PrivateKeyEntry

Certificate chain length: 1

Certificate[1]:

Owner: CN=test, OU=OpenSSO, O=Sun, L=Santa Clara, ST=California, C=US

Issuer: CN=test, OU=OpenSSO, O=Sun, L=Santa Clara, ST=California, C=US

Serial number: 478d074b

Valid from: Tue Jan 15 19:19:39 UTC 2008 until: Fri Jan 12 19:19:39 UTC 2018

Certificate fingerprints:

MD5:  8D:89:26:BA:5C:04:D8:CC:D0:1B:85:50:2E:38:14:EF

SHA1: DE:F1:8D:BE:D5:47:CD:F3:D5:2B:62:7F:41:63:7C:44:30:45:FE:33

SHA256: 39:DD:8A:4B:0F:47:4A:15:CD:EF:7A:41:C5:98:A2:10:FA:90:5F:4B:8F:F4:08:04:CE:A5:52:9F:47:E7:CF:29

Signature algorithm name: MD5withRSA

Version: 1

*******************************************

*******************************************

Replacing OpenAM’s Default Keystore

You should replace this file with a Java Keystore file containing your own key pair and certificate.  This will be used as the key for digitally signing assertions as OpenAM plays the role of a Hosted Identity Provider.  The process for performing this includes five basic steps:

  1. Generate a new Java Keystore file containing a new key pair consisting of the public and private keys.
  2. Export the digital certificate from the file and make it trusted by your Java installation.
  3. Generate encrypted password files that permit OpenAM to read the keys from the Java Keystore.
  4. Replace OpenAM’s default Java Keystore and password files with your newly created files.
  5. Restart OpenAM.

The following provides the detailed steps for replacing the default Java Keystore.

1.  Generate a New Java Keystore Containing the Key Pair

a)      Change to a temporary folder where you will generate your files.

# cd /tmp

b)     Use the Java keytool utility to generate a new key pair that will be used as the signing key for your Hosted Identity Provider.

# keytool -genkeypair -alias signingKey -keyalg RSA -keysize 1024 -validity 730
-storetype JKS -keystore keystore.jks

Enter keystore password:   cangetin

Re-enter new password:   cangetin

What is your first and last name?

  [Unknown]:  idp.identityfusion.com

What is the name of your organizational unit?

  [Unknown]:  Security

What is the name of your organization?

  [Unknown]:  Identity Fusion

What is the name of your City or Locality?

  [Unknown]:  Tampa

What is the name of your State or Province?

  [Unknown]:  FL

What is the two-letter country code for this unit?

  [Unknown]:  US

Is CN=idp.identityfusion.com, OU=Security, O=Identity Fusion, L=Tampa, ST=FL, C=US correct?

  [no]:  yes

Enter key password for <signingKey>

        (RETURN if same as keystore password):  cangetin

Re-enter new password:  cangetin

You have now generated a self-signed certificate but since it has been signed by you, it is not automatically trusted by other applications.  In order to trust the new certificate, you need to export it from your keystore file, and import it into the cacerts file for your Java installation.  To accomplish this, perform the following steps:

2.      Make the Certificate Trusted

a)      Export the self-signed certificate as follows:

# keytool -exportcert -alias signingKey -file idfSelfSignedCert.crt -keystore keystore.jks

Enter keystore password:  cangetin

Certificate stored in file <idfSelfSignedCert.crt>

b)     Import the certificate into the Java trust store as follows:

# keytool -importcert -alias signingKey -file idfSelfSignedCert.crt -trustcacerts
-keystore /usr/lib/jvm/java-7-oracle/jre/lib/security/cacerts

Enter keystore password:   changeit

Owner: CN=idp.identityfusion.com, OU=Security, O=Identity Fusion, L=Tampa, ST=FL, C=US

Issuer: CN=idp.identityfusion.com, OU=Security, O=Identity Fusion, L=Tampa, ST=FL, C=US

Serial number: 34113557

Valid from: Thu Jan 30 04:25:51 UTC 2014 until: Sat Jan 30 04:25:51 UTC 2016

Certificate fingerprints:

         MD5:  AA:F3:60:D1:BA:1D:C6:64:61:7A:CC:16:5E:1C:12:1E

         SHA1: 4A:C3:7D:0E:4C:D6:4C:0F:0B:6B:EC:15:5A:5B:5E:EE:BB:6A:A5:08

         SHA256: A8:22:BE:79:72:52:02:6C:30:6E:86:35:DA:FD:E0:45:6A:85:2C:FE:AA:FB:69:EA:87:30:65:AF:2E:65:FB:EB

         Signature algorithm name: SHA256withRSA

         Version: 3

Extensions:

#1: ObjectId: 2.5.29.14 Criticality=false

SubjectKeyIdentifier [

KeyIdentifier [

0000: 12 3B 83 BE 46 D6 D5 17   0F 49 37 E4 61 CC 89 BE  .;..F….I7.a…

0010: 6D B0 5B F5                                        m.[.

]

]

Trust this certificate? [no]:  yes

OpenAM needs to be able to open the truststore (keystore.jks) and read the key created in step 1.  The private key and truststore database have both been locked with a password that you entered while configuring the truststore and signing key, however.  For OpenAM to be able to read this information you need to place these passwords in files on the file system.

3.      Generate Encrypted Password Files

Note:  The passwords will start out as clear text at first, but will be encrypted to provide secure access.

a)      Create the password file for the trust store as follows:

# echo “cangetin”  >  storepass.cleartext

b)     Create the password file for the signing key as follows:

# echo “cangetin”  >  keypass.cleartext

 c)      Prepare encrypted versions of these passwords by using the OpenAM ampassword utility (which is part of the OpenAM administration tools).

# ampassword –encrypt keypass.cleartext > .keypass

# ampassword –encrypt storepass.cleartext > .storepass

Note:  Use these file names as you will be replacing the default files of the same name.

4.      Replace the Default OpenAM Files With Your New Files

a)      Make a backup copy of your existing keystore and password files.

# cp $CONFIG/$URI/.keypass $CONFIG/$URI/.keypass.save

# cp $CONFIG/$URI/.storepass $CONFIG/$URI/.storepass.save

# cp $CONFIG/$URI/keystore.jks $CONFIG/$URI/keystore.jks.save

b)     Overwrite the existing keystore and password files as follows:

# cp .keypass $CONFIG/$URI/.keypass

# cp .storepass $CONFIG/$URI/.storepass

# cp keystore.jks $CONFIG/$URI/keystore.jks

5.      Restart the container where OpenAM is currently running.

This will allow OpenAM to use the new keystore and read the new password files.

Verifying Your Changes

You can use the keytool utility to view the contents of your Keystore as previously mentioned in this article.  Alternately, you can log in to the OpenAM Console and see that OpenAM is using the new signing key as follows:

  1. Log in to OpenAM Console.
  2. Select the Common Tasks tab.

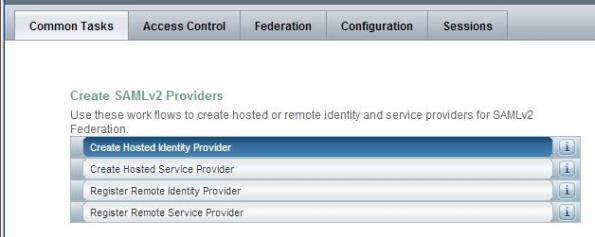

  3. Select the Create Hosted Identity Provider option beneath the Create SAMLv2 Providers section.

CreateHostedIdentityProvider

Verify that you now see your new signing key appear beneath the Signing Key option as follows:

 verifySigningCertificate

You have now successfully replaced the default OpenAM Java Keystore with your own custom version.
